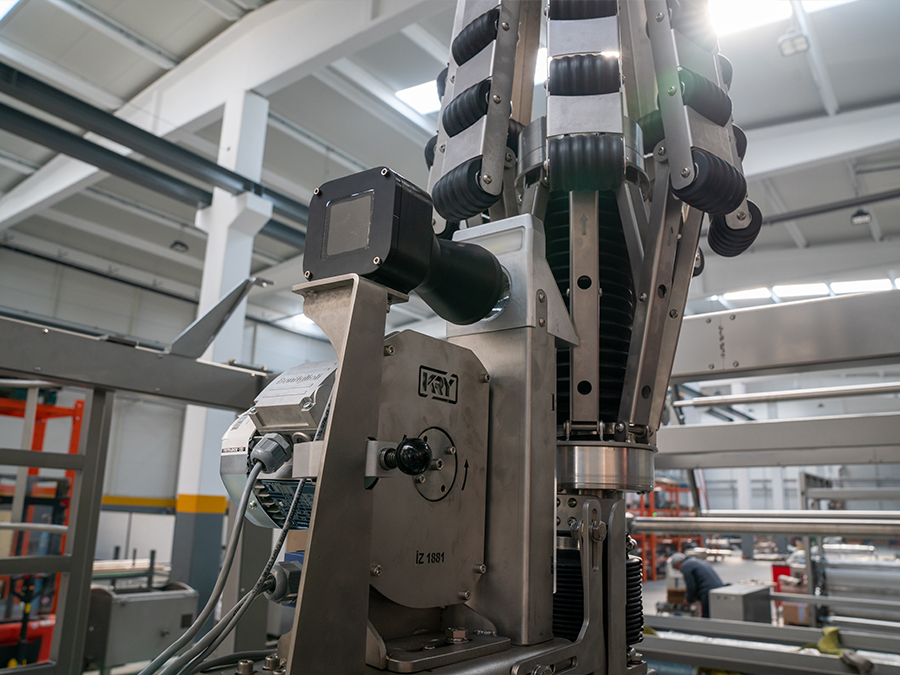

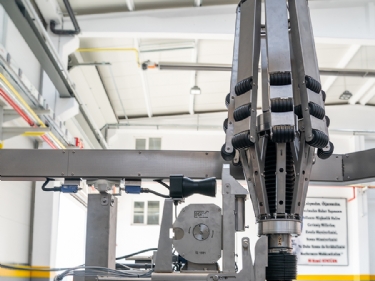

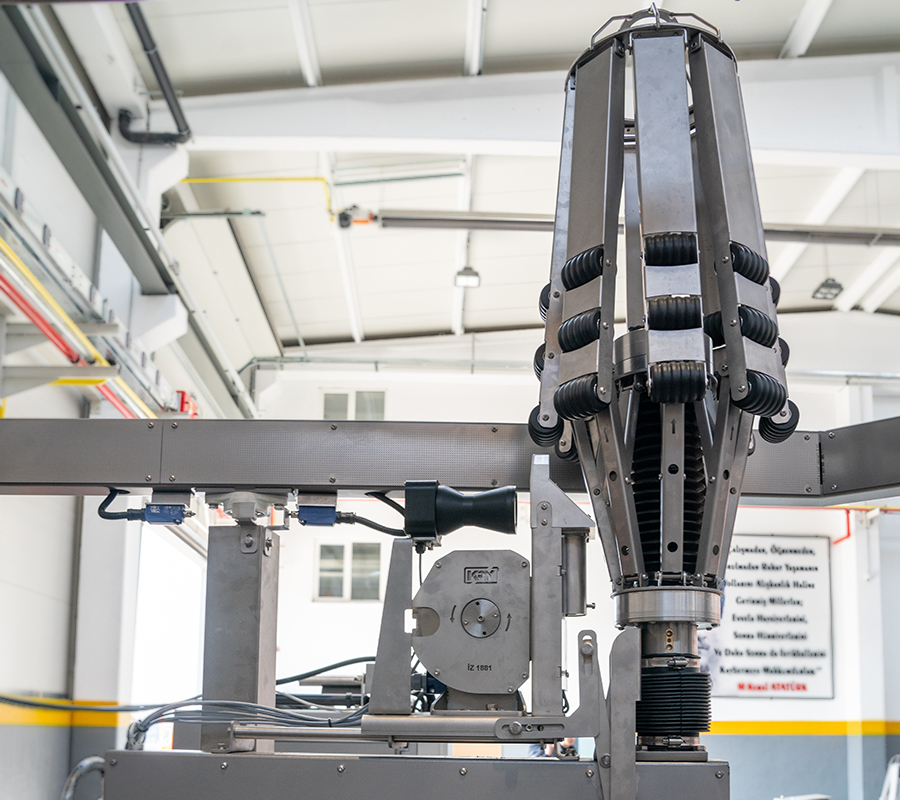

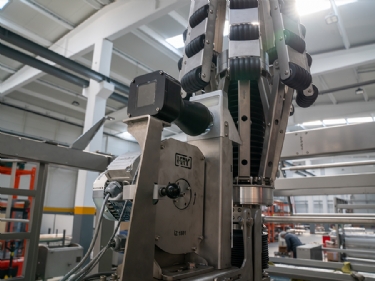

Cutting Unit With Basket IZ - 1881®

Working with the principle of IZ-1881® Optical reading, this product is equipped with Bonfiglioli engine, high alloy blade, unique and stable software. At the same time, this product, which has a self-sharpening feature, has the title of cutting cart with ultra-quiet at high speeds thanks to the roller wheel it has in front of its products of European origin, and the most sensitive vision thanks to its may tracking technology.

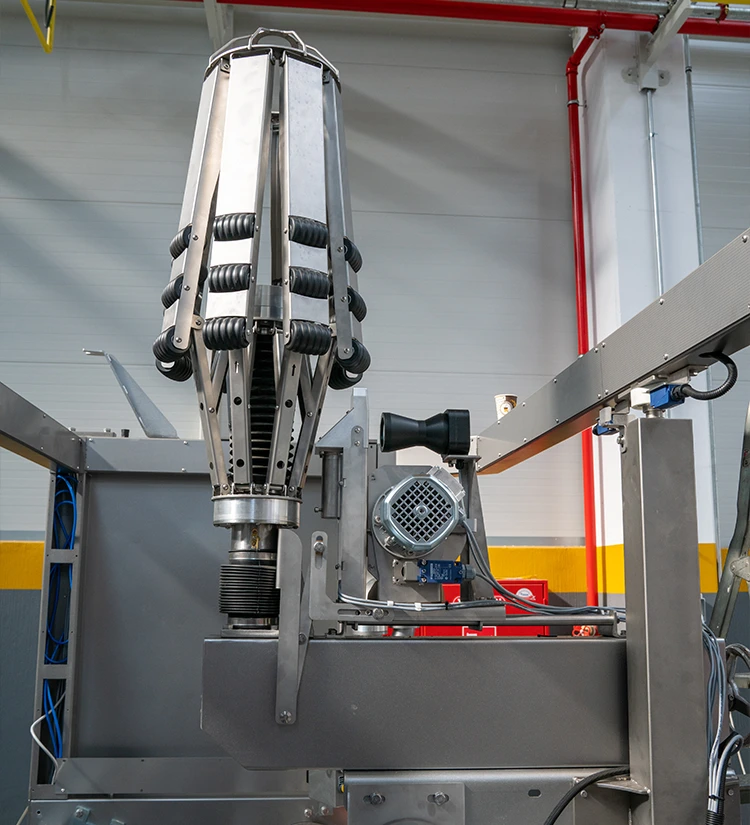

GENERAL FEATURES

First and only completely domestic production in Turkey

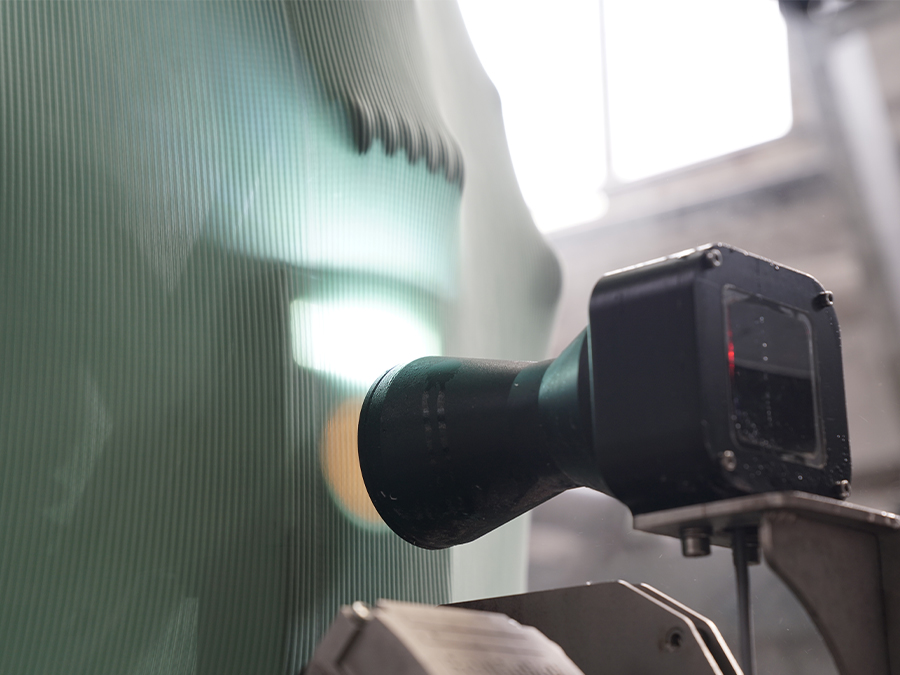

Special may tracking sensor developed by the Kıray engineering team, along with an electronic card, software, and mechanical body design
Stable and precise fabric tracking and cutting
Perfect may line tracking for different types of fabric
Quick cutting, low waste
Long-lasting cutting knife with a self-sharpening feature
Manual and fully automatic operating options
Quiet operation at high speeds
Design preventing contamination in the optical unit
Detection of fabric breaks and fabric sewing sections
No motor failure owing to the AC motor drive construction, positioned away from water
Independent basket fan, unaffected by enzymes, providing excellent balloon inflation
No failure or locking issues thanks to the stainless steel bearing design on the basket arm
Manually adjustable basket diameter
AISI 304 stainless steel body and interior mechanism

TECHNICAL SPECIFICATIONS

CUTTING UNIT WITH BASKET

MAX WORKING SPEED	100 m/min
BASKET DIAMETER	450 mm – 950 mm
ELECTRIC INPUT VOLTAGE	380 V 50HZ/ 60 Hz
CONTROL VOLTAGE	24V
INSTALLED POWER	1 KW
OPERATING TEMPERATURE	5 – 60° C
BODY MATERIAL	AISI 304 STAINLESS STEEL
UNIT WEIGHT	115 Kg
